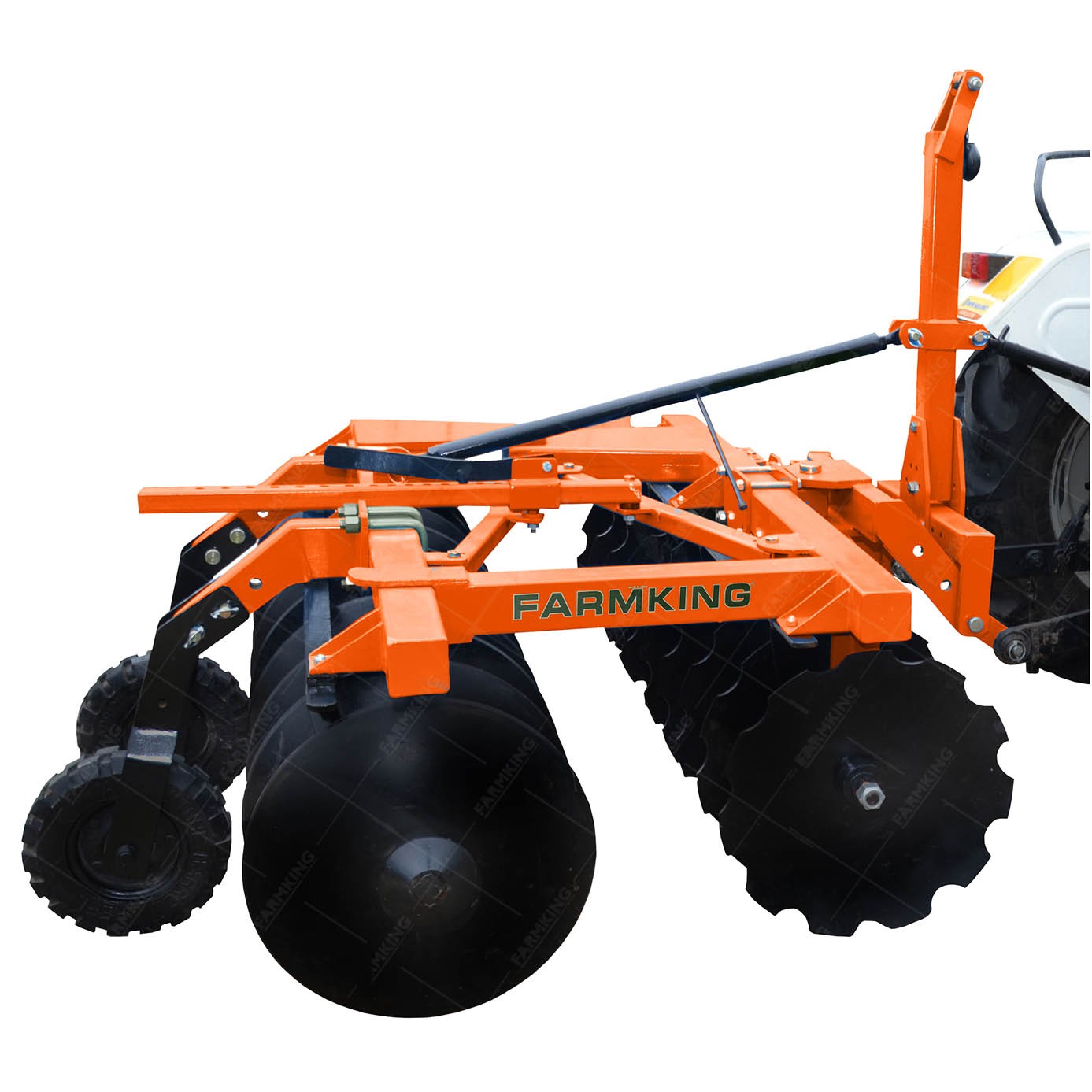

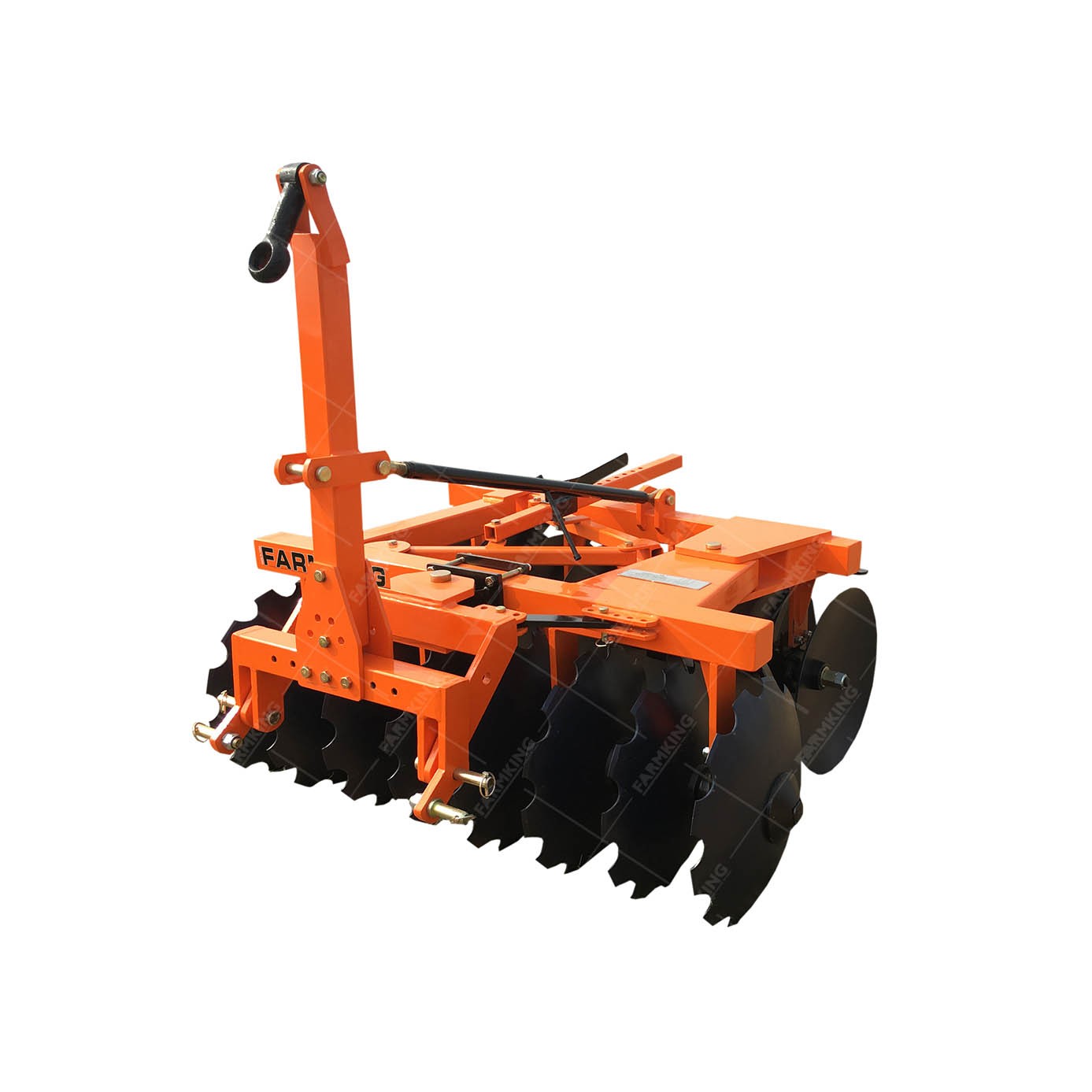

FARMKING Compact Disc Harrow

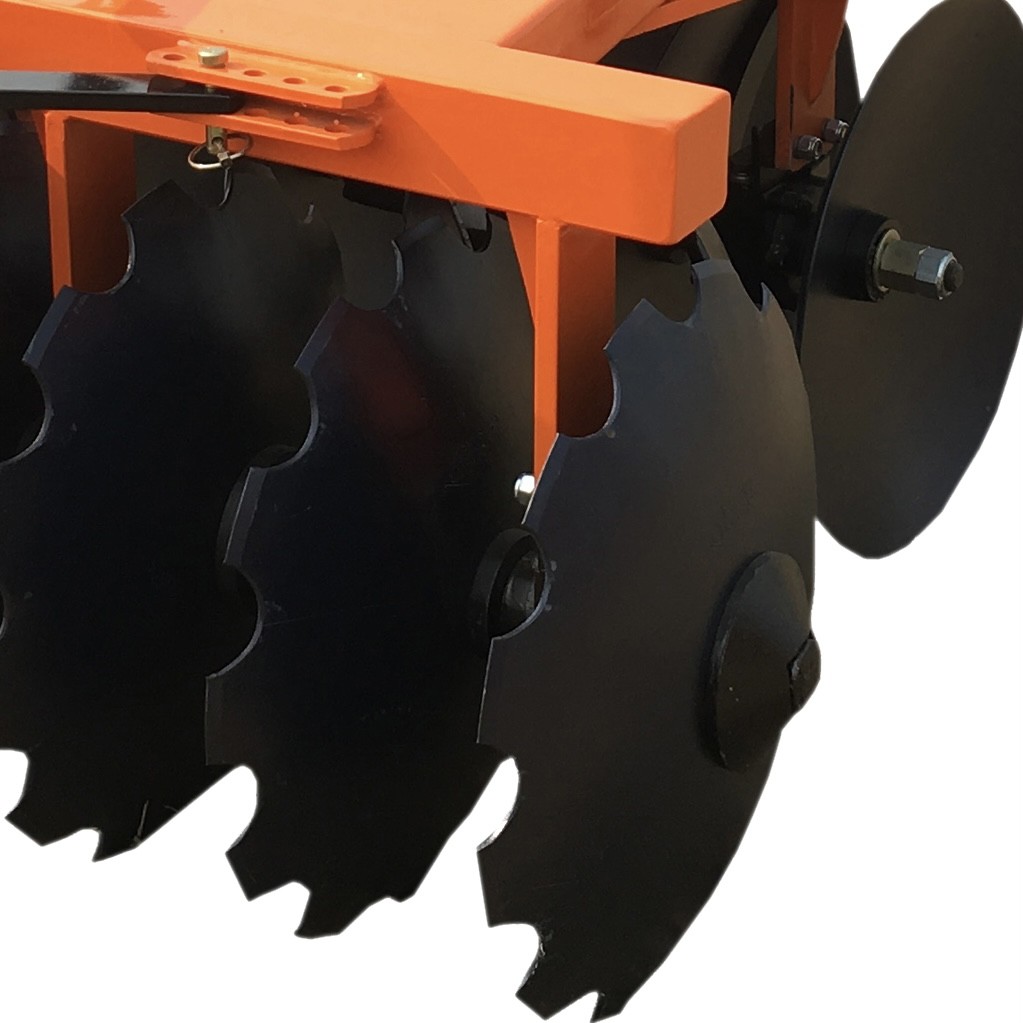

Compact Disc Harrow Disc Gangs
Compact Harrow Working in Stubble Field
FARMKING Compact Disc Harrow
Compact Disc Harrow Disc Gangs
Compact Harrow Working in Stubble Field

Compact Disc Harrow

  • Tillage/
  • Harrow/
  • The Compact Disc Harrow is ideal for shallow stubble cultivation in light and medium soils, loosening the topsoil while effectively incorporating organic residues into the soil.
  • It can be operated using the tractor's three-point linkage or coupled with the tractor hitch, providing excellent flexibility and ease of operation.
  • Adjustable disc gang angles allow the working depth to be increased or decreased according to different soil conditions and field requirements.
  • The Disc Gang is equipped with maintenance-free bearings and specially designed disc scrapers, ensuring reliable performance and maximum productivity even in the toughest soil conditions.
  • Available with optional transport wheels, the Compact Disc Harrow offers safe and convenient road transportation between fields.
Power required

50 - 90 H.P.

Number of Discs

16 - 22 DISCS

Disc Sizes

560 & 610 mm

Cutting Width

1912 - 2562 mm

Compact Disc Harrow
MeasureFKCDH-16DFKCDH-18DFKCDH-20DFKCDH-22D
Working Width (mm)1912212823452562
No. of Discs16182022
Bearing Hubs6888
Gang Axle32 mm (Solid Square Rod)
Underframe Clearance (mm)470 / 18.5"
Disc Diameter (mm)560 / 22" or 610 / 24" (Optional)
Disc Spacing (mm / Inches)228 / 9"
Type of DiscPlain Disc / Notched in Front (Optional)
Gang Angle AdjustmentManual / Hydraulic (Optional)
Approx. Weight (Kg./Lbs.)718 / 1755825 / 1856890 / 1962975 / 2150
Tractor Power (H.P.)50 - 60 HP60 - 70 HP70 - 80 HP80 - 90 HP

The company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.

Accessories shown are not a part of standard equipment.

22 inch or 24 inch


Transportation Wheels
