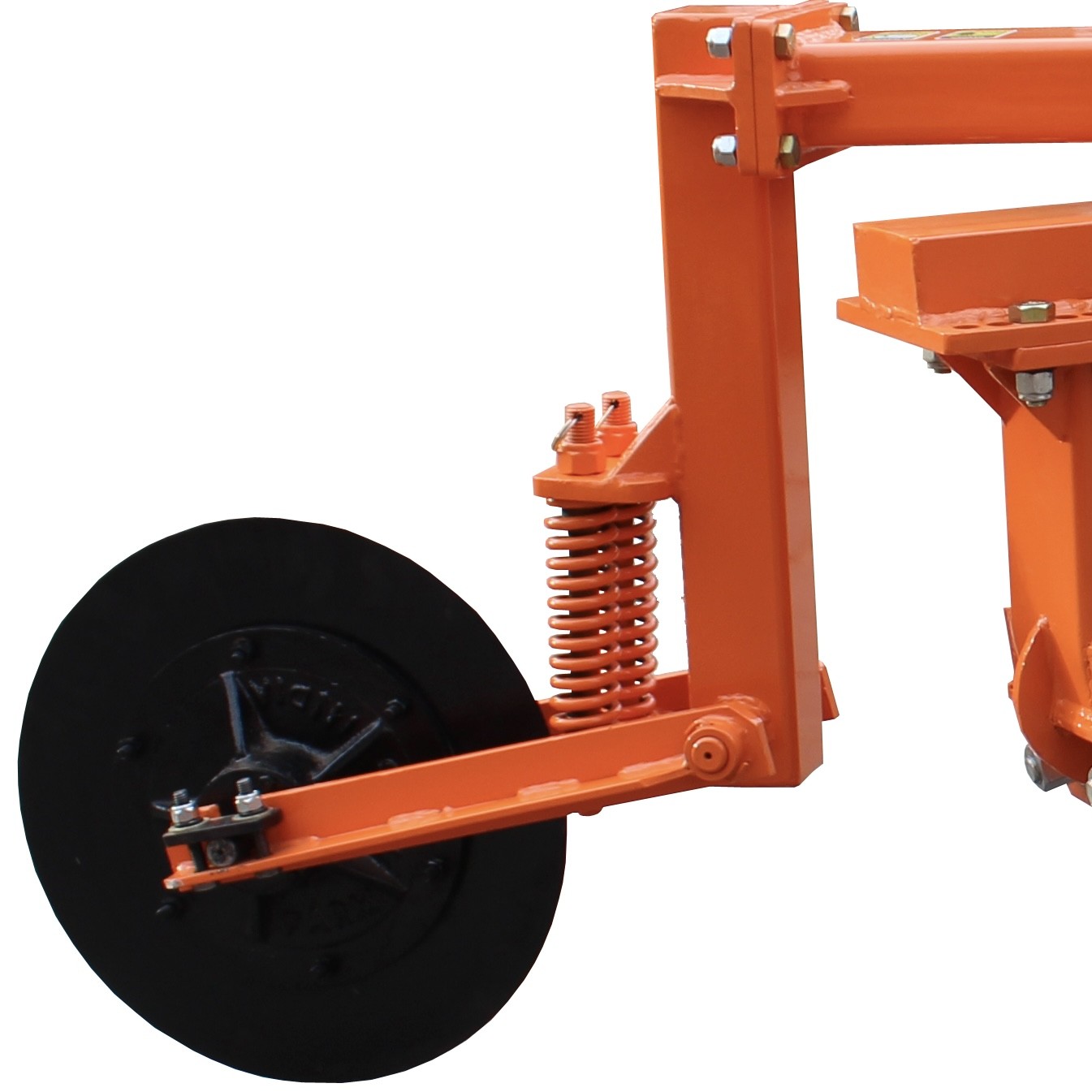

Disc Plough adjustable legs and discs

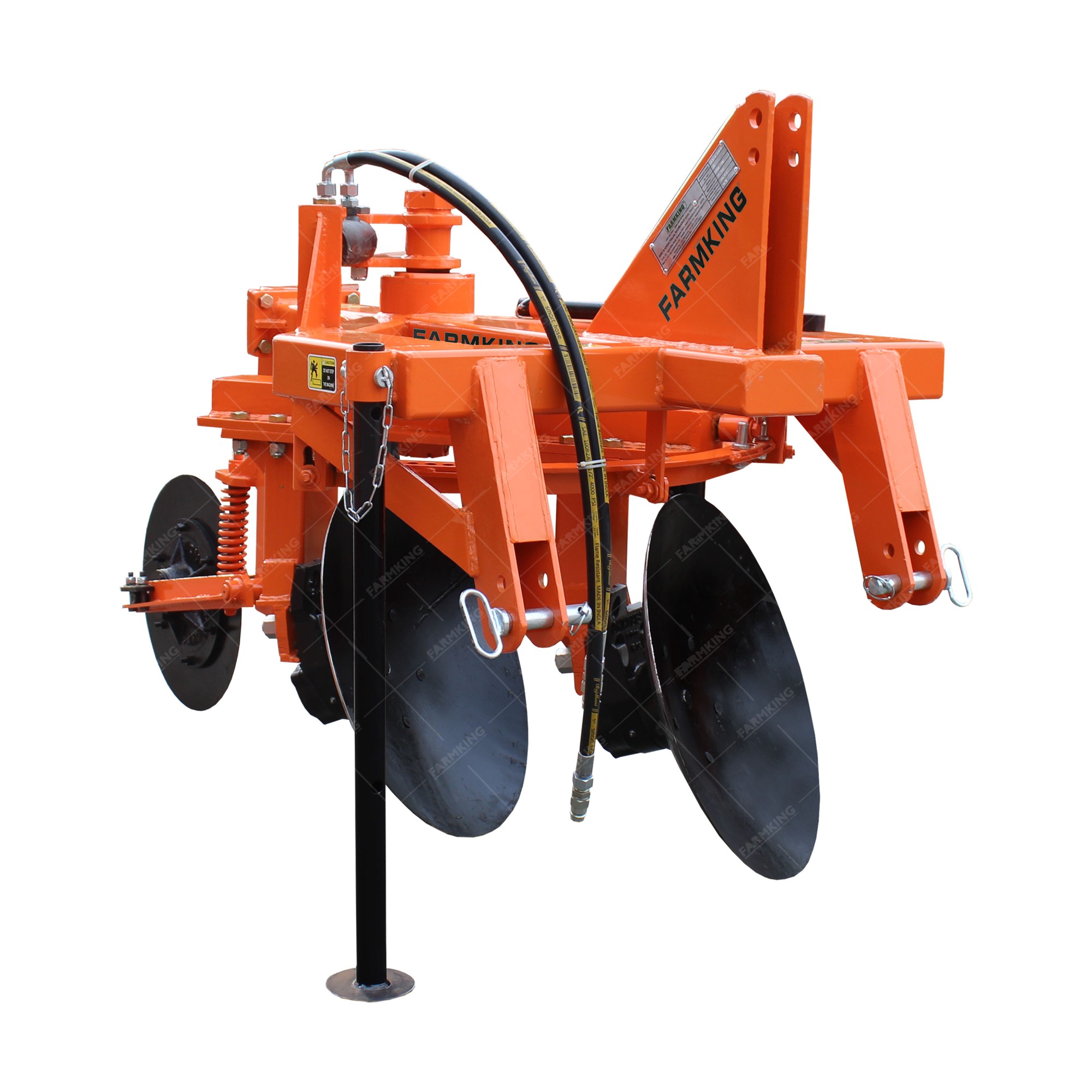

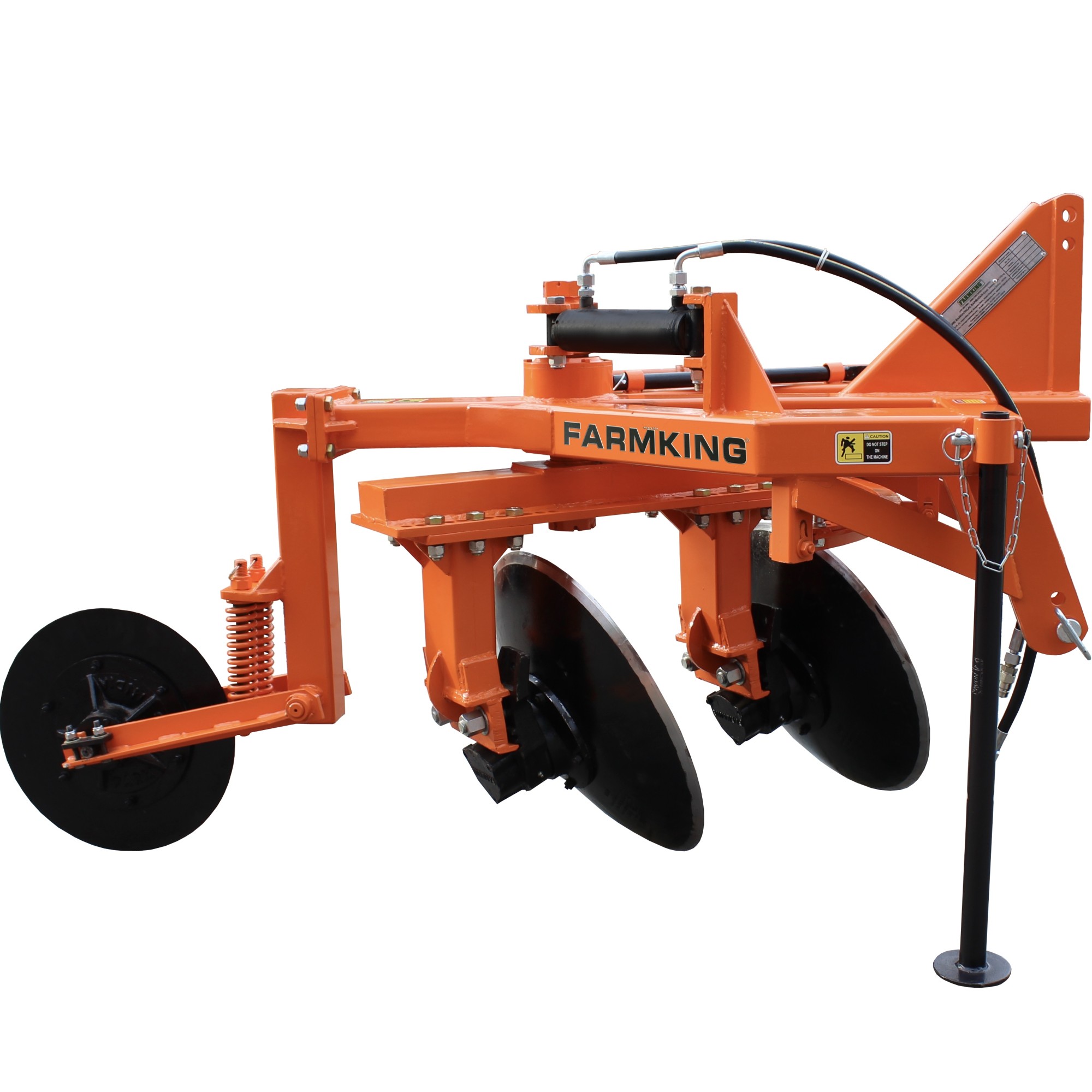

FARMKING Hydraulic Reversible Disc Plough

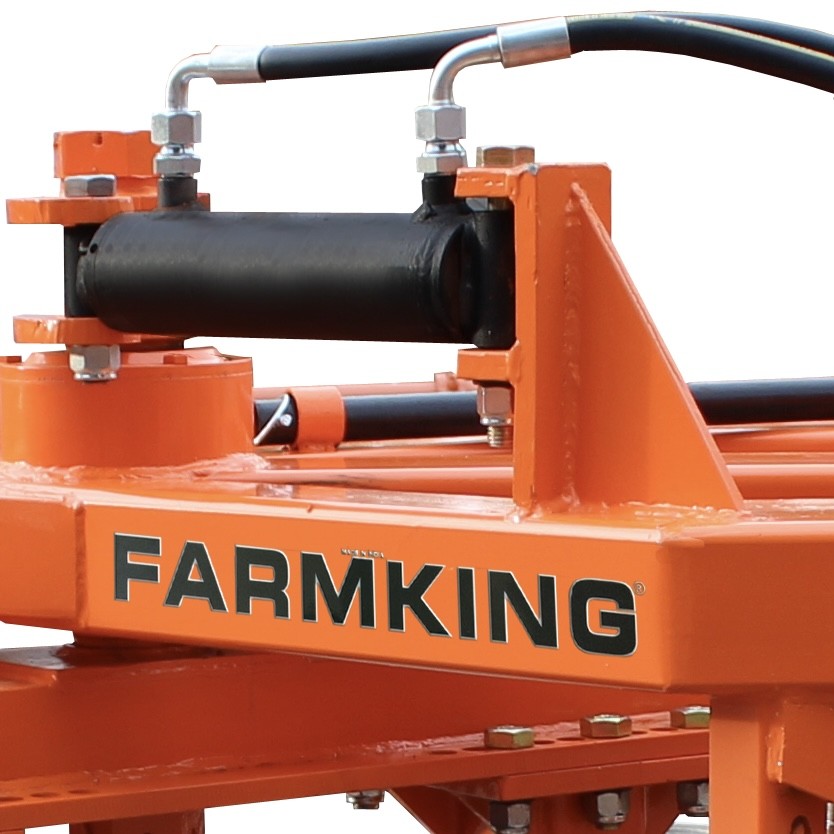

Hydraulic reversing system on disc plough
Disc Plough adjustable legs and discs
FARMKING Hydraulic Reversible Disc Plough
Hydraulic reversing system on disc plough

Disc Plough Hydraulic Rev.

  • Tillage/
  • Plough/
  • FARMKING Hydraulic Reversible Disc Plough features adjustable bottom legs that allow easy adjustment of disc spacing to suit varying field and stubble conditions.
  • The quick and efficient hydraulic reversing mechanism improves field productivity, delivers superior soil pulverization, reduces maintenance, and enhances fuel efficiency by up to 35% compared to conventional disc ploughs.
  • Suitable for all soil types and a wide range of crops including wheat, sugarcane, corn, rice, maize, millets, and cotton, making it ideal for soil turning, raising, and mixing operations.
  • Provides uniform soil inversion and consistent tillage, creating a well-levelled field surface for improved crop establishment.
Power required

45 -75 HP

Number of Discs

2 - 4 Discs

Disc Sizes

610 & 660 mm

Working Depth

380 mm

Disc Plough Hydraulic Rev.
Measure FKDPF-2D FKDPF-3D
Working Width (mm) 500 - 550 & Adjustable 875 - 925 & Adjustable
Frame Fabricated; 100 × 50 mm Channel
Underframe Clearance (mm) 680 / 27"
Disc Diameter (mm) 610 / 24" or 660 / 26" (Optional)
Disc Spacing (mm / Inches) 22" / 560 (Adjustable)
Type of Disc Plain Disc
Working Depth (mm / Inch) Up to 300 / 12"
Approx. Weight (Kg./Lbs.) 330 / 728 420 / 926
Tractor Power (H.P.) 45 - 60 HP 60 - 75 HP

The company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.

Accessories shown are not a part of standard equipment.

22 inch or 24 inch or 26 inch


Scrapper for discs
