DISC PLOUGH - ITC TYPE

  • Tillage/
  • Plough/

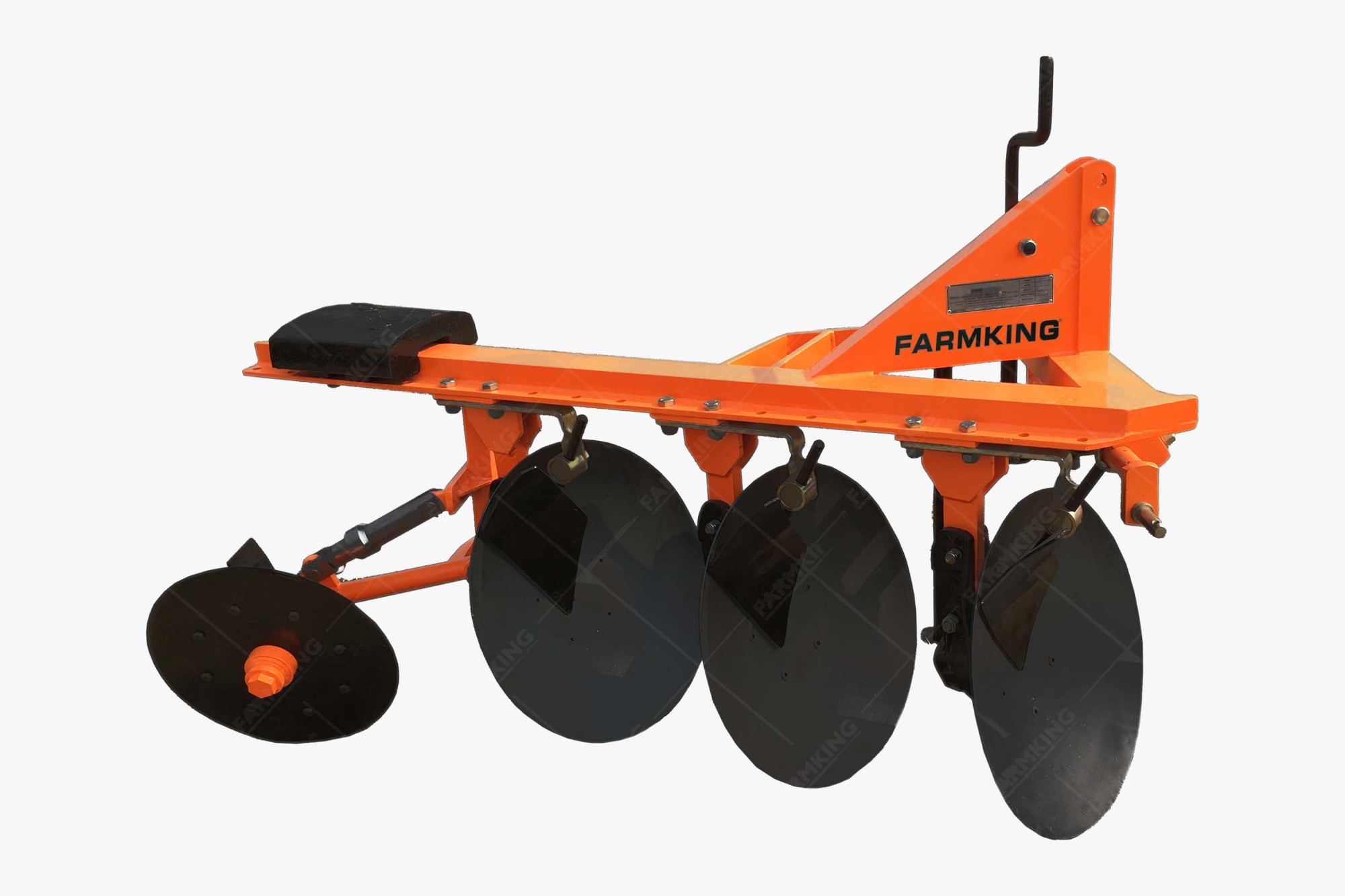

  • FARMKING Type Disc Plough is designed for opening new fields and is available in 2 and 3-bottom configurations, making it ideal for light to medium soil conditions and efficient soil turning, raising, and mixing.

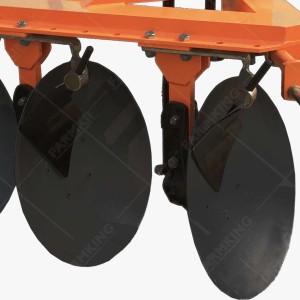

  • Adjustable leg bottoms allow easy modification of disc spacing to suit different field conditions and operating requirements.

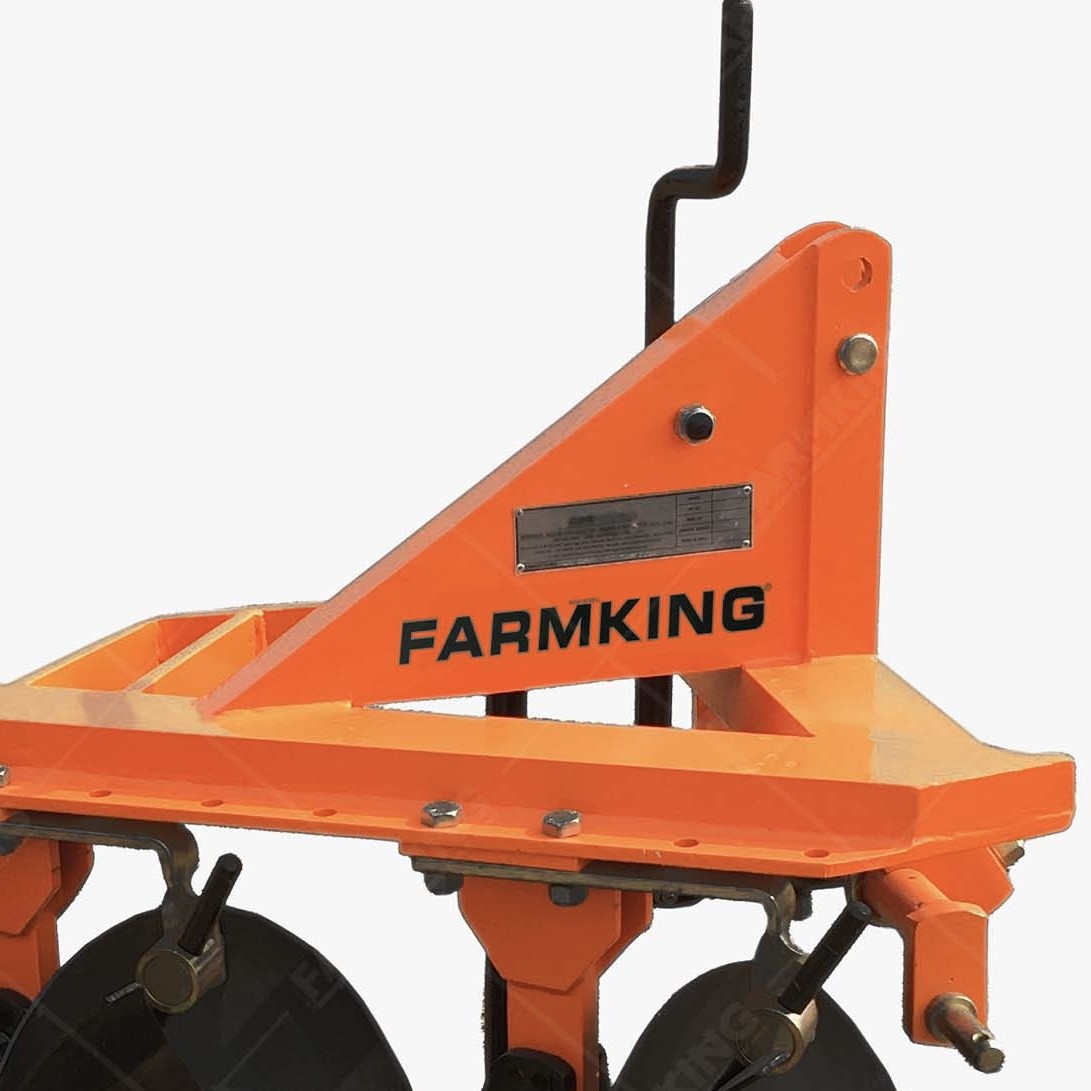

  • A standard adjustable cross shaft enables quick and precise depth adjustment, while the cross shaft rotation can be conveniently operated using the handle.
  • The uniquely engineered Heavy-Duty Hub is built to perform reliably under the toughest working conditions, ensuring long service life and dependable operation.
  • High underbody clearance allows smooth operation in heavy trash, crop residue, and stubble-covered fields without clogging.

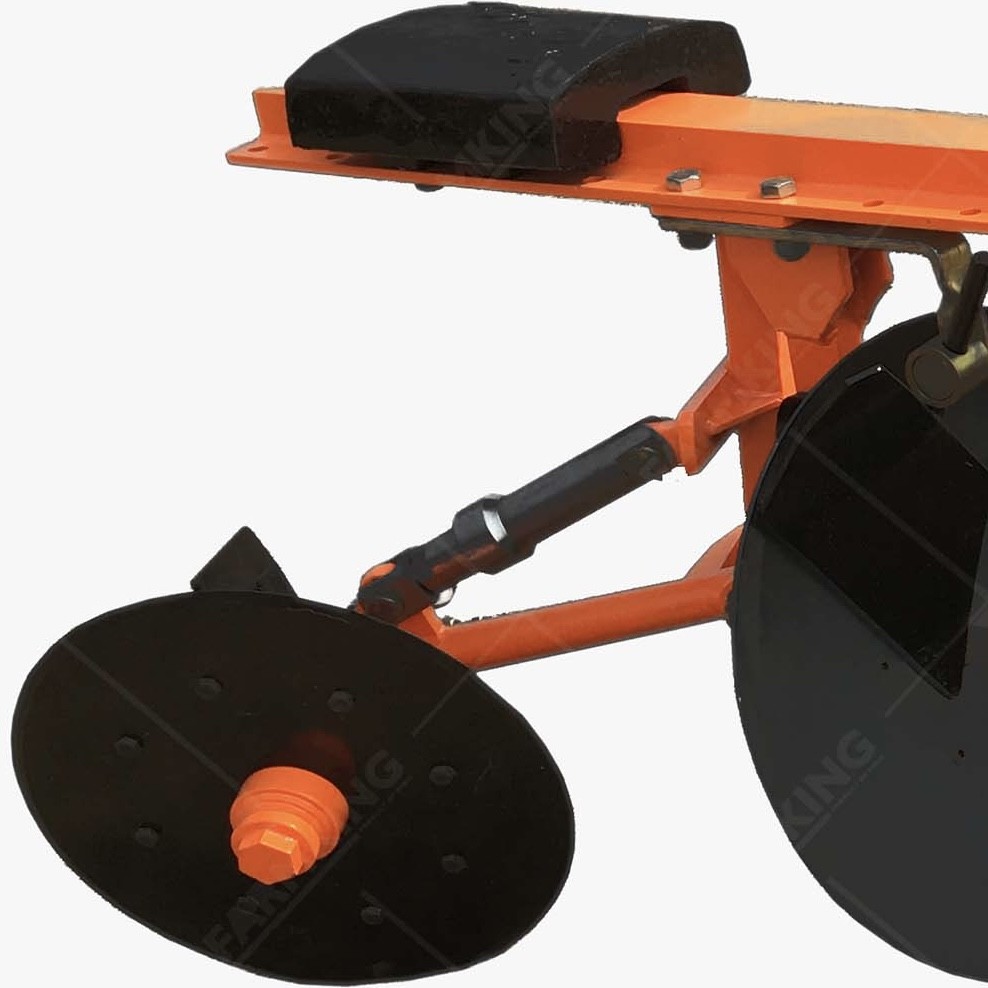

  • An optional additional disc can be fitted to match varying soil conditions and improve field performance.
Power required

45 - 75

Number of Discs

2 - 4

Disc Sizes

610 & 660 mm

Working Depth

Upto 350 mm

DISC PLOUGH - ITC TYPE
Measure FKDPF-2D FKDPF-3D
Working Width (mm) 500 - 550 & Adjustable 875 - 925 & Adjustable
Frame Fabricated; 100 × 50 mm Channel
Underframe Clearance (mm) 680 / 27"
Disc Diameter (mm) 610 / 24" or 660 / 26" (Optional)
Disc Spacing (mm / Inches) 22" / 560 (Adjustable)
Type of Disc Plain Disc
Working Depth (mm / Inch) Up to 300 / 12"
Approx. Weight (Kg./Lbs.) 330 / 728 420 / 926
Tractor Power (H.P.) 45 - 60 HP 60 - 75 HP

The company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.

Accessories shown are not a part of standard equipment.

22 inch or 24 inch or 26 inch Discs


Scrapper for discs


Extra disc kit
