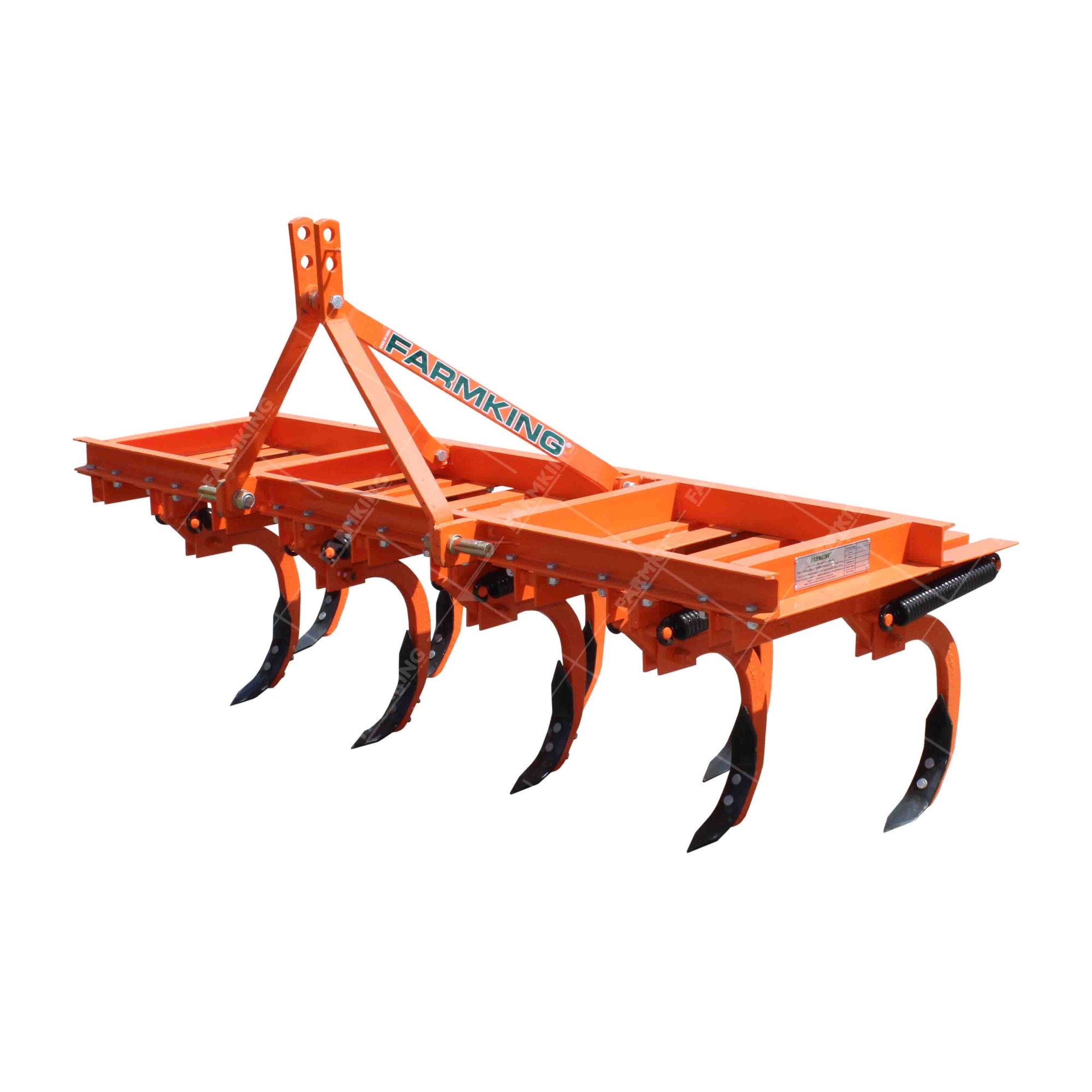

FARMKING Extra Heavy Duty Cultivator
Extra Heavy Duty Cultivator frame

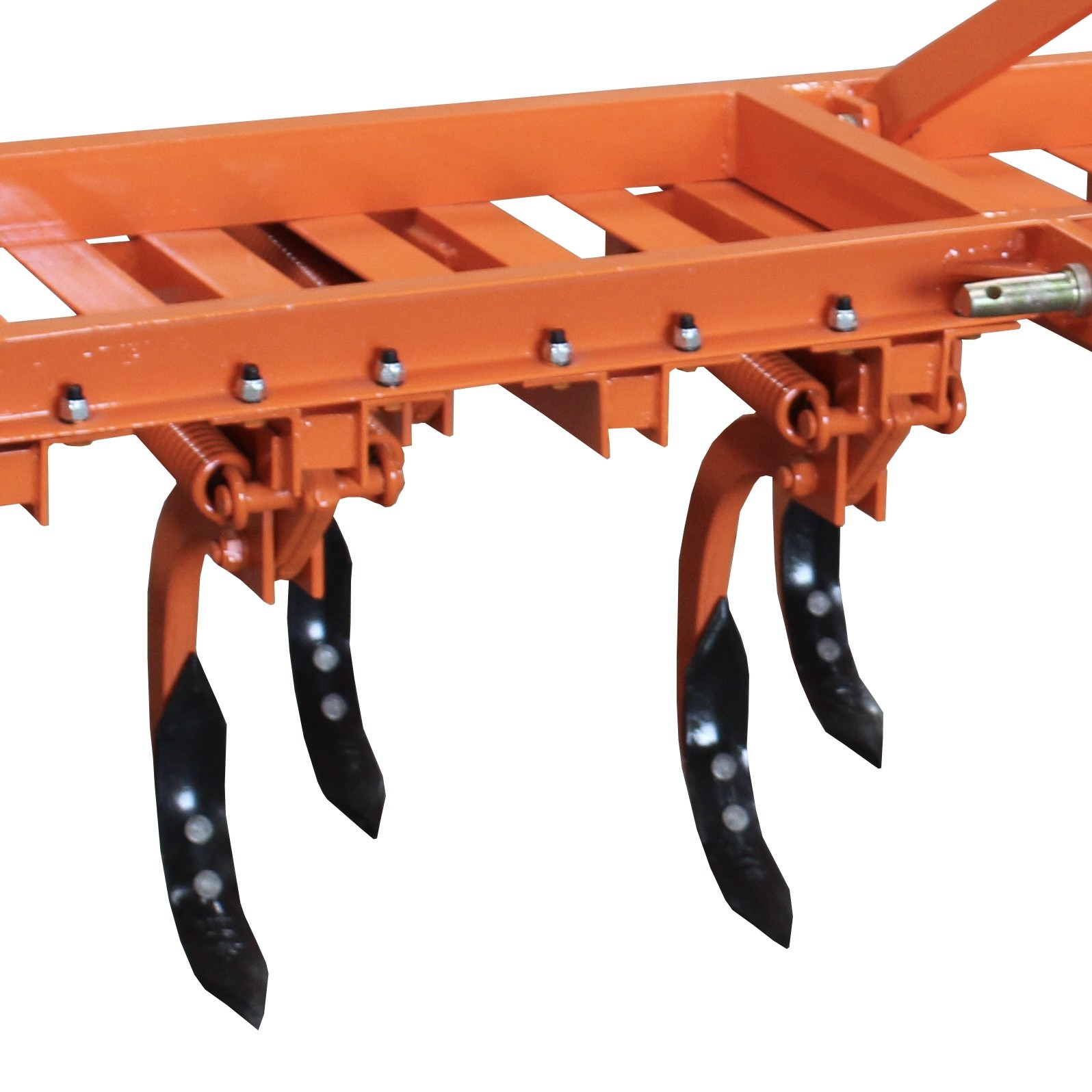

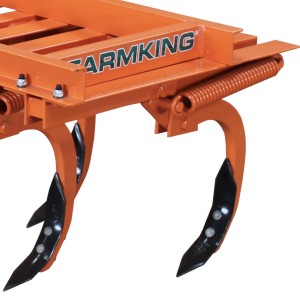

Extra HD cultivator forged spring tynes
FARMKING Extra Heavy Duty Cultivator
Extra Heavy Duty Cultivator frame
Extra HD cultivator forged spring tynes

Extra Heavy Duty Cultivator

  • Tillage/
  • Cultivator / Tiller/
  • FARMKING Extra HD Cultivator is built with a heavy-duty channel frame and reinforced intermediate supports, making it ideal for hard, black, and heavy soil conditions.
  • Equipped with unbreakable forged tynes mounted on special steel springs that absorb shocks and deflections caused by stones and root-infested fields, ensuring uninterrupted operation.
  • Effectively opens, aerates, and loosens the soil up to a working depth of 9 inches, promoting healthy root development and improved crop growth.
  • The optimized tyne design and spacing reduce tractor load, improve fuel efficiency, and deliver efficient field performance.
  • Fitted with double-pointed reversible shovels that maximize service life, reduce replacement costs, and maintain consistent tillage performance.
Power required

35 - 75 H.P.

Working Width

1830 - 3200 mm

Number of Tynes

9 - 15

Weight Range

270 - 530 KG

Extra Heavy Duty Cultivator
Measure FKRC - 9 FKRC – 11 FKRC - 13
Overall Dimensions (L × W × H) mm 810 × 2010 × 1020 810 × 2470 × 1020 920 × 2925 × 1020
Working Width (mm / Inches) 1830 / 72" 2290 / 90" 2745 / 108"
Construction (mm / Inches) Square Frame Construction
Shovel (mm) 8 mm - Reversible

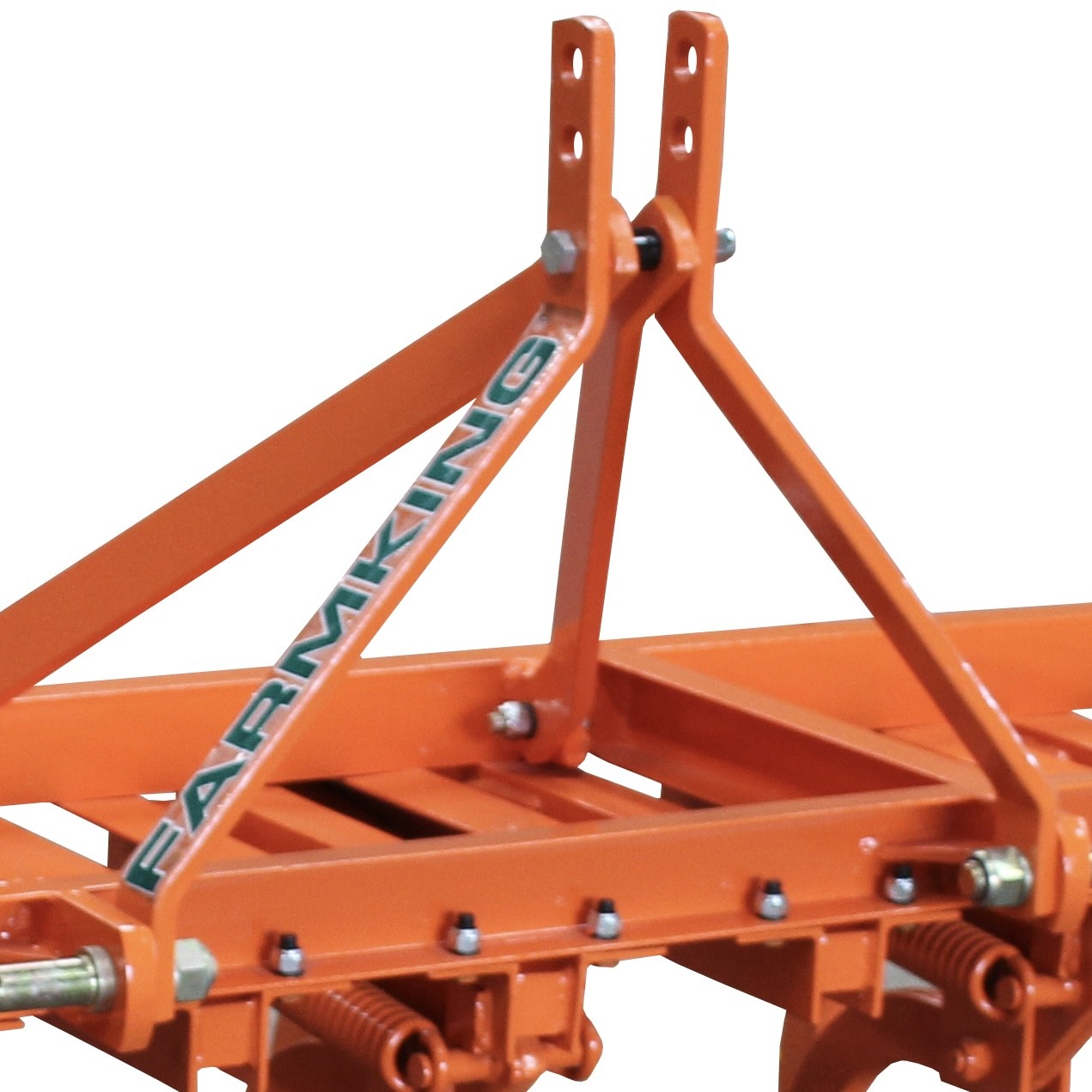

Three Point Hitch CAT – II
Tyne (mm / Inches) Single Piece Profile Cut 20 / 22 / 25 / 28 / 30 mm
Weight - 4S (Kg./Lbs.) 195 / 429 245 / 539 290 / 638
Tractor Power (H.P.) 40 - 45 45 - 55 55 - 65

The company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.

Accessories shown are not a part of standard equipment.

100 x 50 mm / 4” x 2” Frame Construction


W - 50 mm / 2” x T - 30 mm / 1.25” Tyne Size


Folding Option 11 + 2 in 13 Tyne


Folding Option 13 + 2 in 15 Tynes
