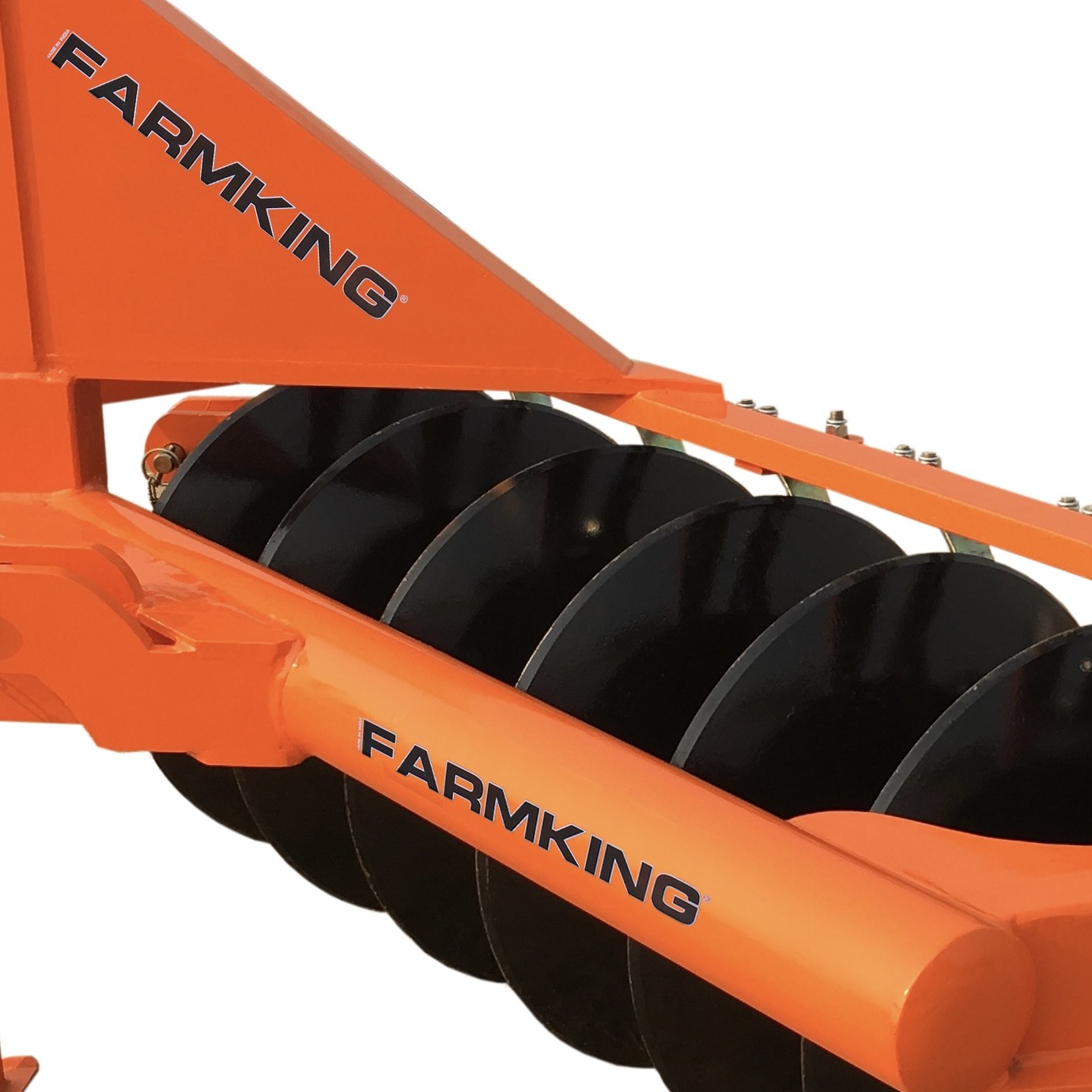

Poly Disc Harrow notched disc
Poly Disc Harrow pedestal bearing hubs
FARMKING Poly Disc Harrow
Poly Disc Harrow notched disc
Poly Disc Harrow pedestal bearing hubs
FARMKING Poly Disc Harrow

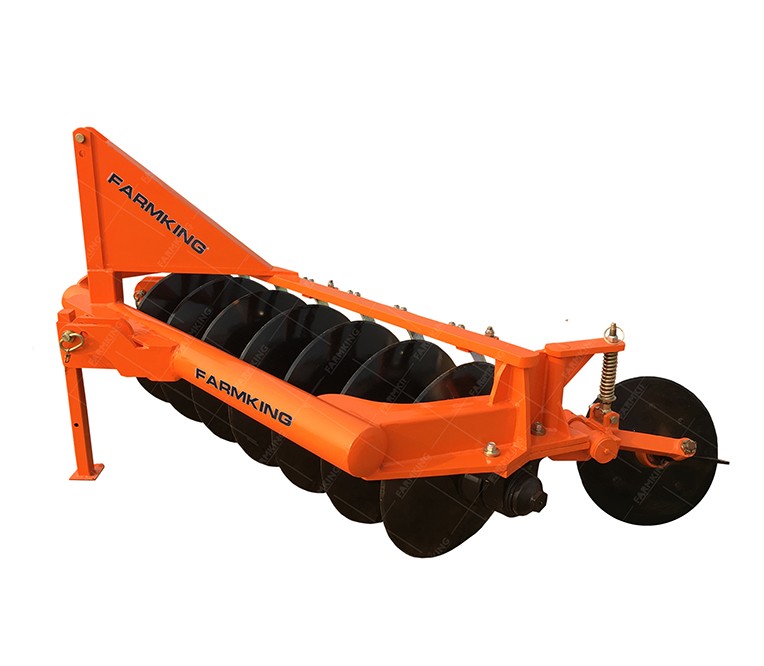

Poly Disc Harrow

  • Tillage/
  • Harrow/
  • FARMKING Poly Disc Harrow is available in 6, 7, and 8-disc variants and is designed to perform efficiently in all soil conditions with minimum tractor load.
  • Ideal for primary soil preparation, it opens the land while effectively raising, turning, and mixing the soil before cultivation.
  • Its balanced design and excellent stability provide superior traction and deeper soil penetration, promoting better root development and improved crop yields.
  • The rugged heavy-duty frame with a robust axle is built to withstand the toughest field conditions and demanding farming operations.
  • Equipped with high-quality Boron Steel Discs for extended service life, available in both plain and notched disc configurations to suit different field requirements.
Power required

50-75

Number of Discs

6 - 8

Disc Sizes

560 & 610 mm

Working Depth

upto 200 mm

Poly Disc Harrow
MeasureFKPDH-6DFKPDH-7DFKPDH-8D
Tillage Width (mm)121014601710
No. of Discs678
Bearing Hubs2 Nos. (Heavy Duty - Pedestal Type)
Gang Axle90 mm Tube with Solid Ends
ScrapperAdjustable
Disc Diameter (mm)610 / 24" or 660 / 26" (Optional)
Disc Spacing (mm / Inches)250 / 10"
Type of DiscNotched Disc / Plain Disc (Optional)
CoulterPivotable - Spring Loaded
Approx. Weight (Kg./Lbs.)505 / 1112560 / 1243610 / 1342
Tractor Power (H.P.)60 - 75 HP75 - 90 HP90 - 110 HP

The company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.

Accessories shown are not a part of standard equipment.

24 inch or 26 inch Disc


Boron Steel Blades / Carbon Steel Blades


Notched / Plain Discs
