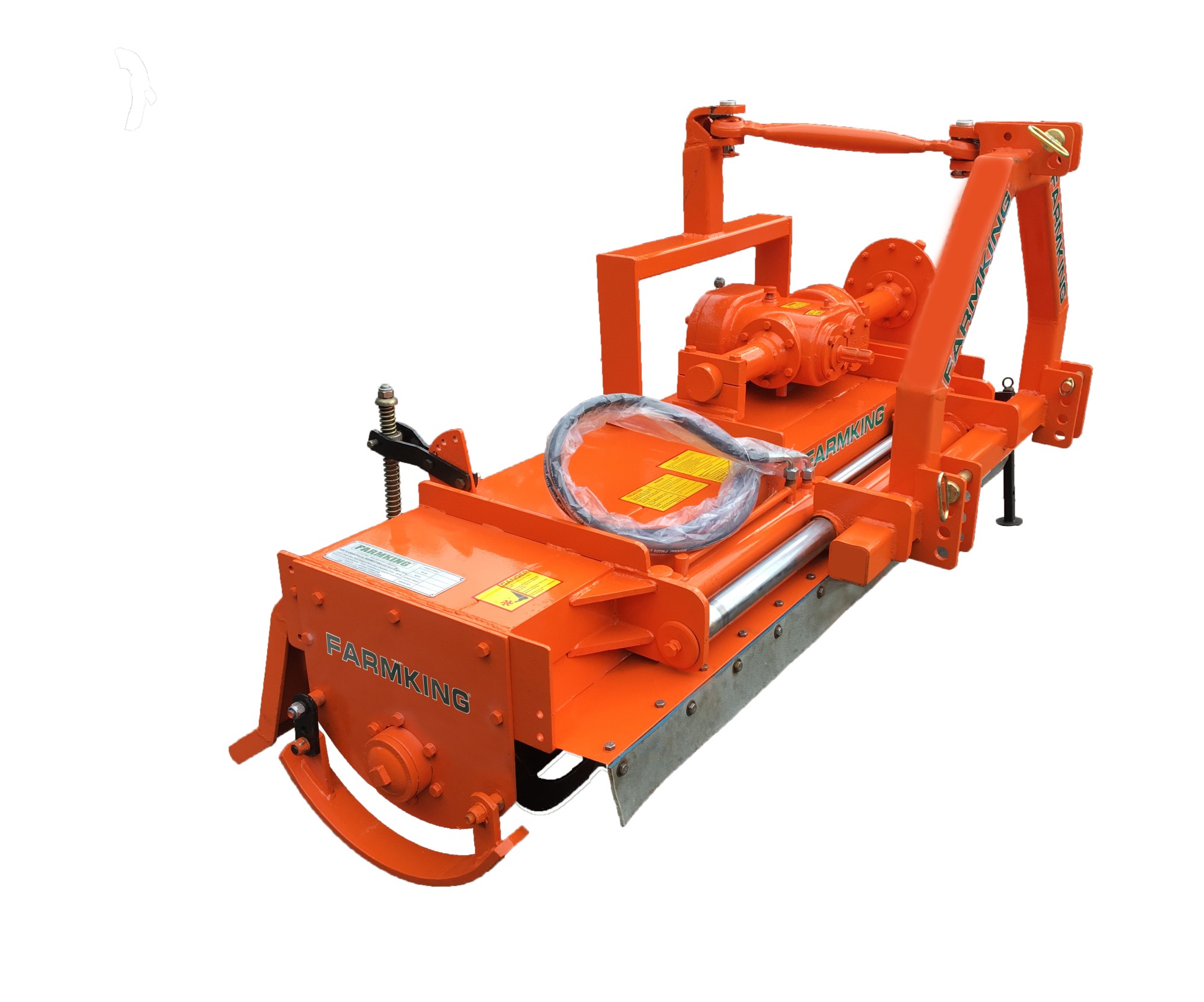

Side Shifting Rotary Tiller

  • Tillage/
  • Rotavator/
  • Side Shifting Rotary Tiller is specially designed for orchards, greenhouses, vineyards, and farms. Its hydraulic side shifting mechanism allows easy operation close to tree bases, fence lines, and other hard-to-reach areas.
  • The hydraulic side shifting system enables operation in both the center and offset positions, providing greater flexibility for different field conditions.
  • Efficiently mixes crop residues and organic fertilizers into the soil, improving humus content and creating a well-prepared seedbed for healthy crop establishment.
  • The side shifting mechanism can be conveniently operated from the tractor seat, allowing the operator to adjust the tiller position without leaving the tractor.
POWER REQUIRED

45 -75 HP

WORKING WIDTH

1500 - 2000 mm

NUMBER OF BLADES

36 - 48

WORKING DEPTH

125 mm

Side Shifting Rotary Tiller
MeasureFKRT150 SSFKRT175 SSFKRT200 SS
Overall Dimensions
(L × W × H) mm
1900 × 980 × 11002150 × 980 × 11002455 × 980 × 1100
Working Width (mm)150017502000
Three Point HitchCAT – II
Three Point Hitch Shift MechanismHydraulic
Frame Offset (mm)370
Side TransmissionGear Drive
Gearbox (RPM)Multi-Speed (540 RPM)
Drive Line SafetyShear Bolt
No. of Blades - L/C364248
Max. Working Depth (mm)125
Weight (Kg./Lbs.)560 / 1235590 / 1301620 / 1367
Tractor Power (H.P.)45 - 50 HP50 - 60 HP60 - 75 HP

The company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.

Accessories shown are not a part of standard equipment.

Driveline Safety : Shear Bolt / Slip Clutch


Hitch levelling support wheels


L / C Types


540 / 1000 RPM Gearbox
